Z controller File

Uniform Server 5.6-Nano.

File menu Introduction

The File drop-down menu has nothing to do with files! Genially this is the first location a user checks, hence this menu contains most commonly used server configurations.

Menu Item	Description
Put www On-Line Restrict www Local Put ssl On-Line Restrict ssl Local	I refer to putting the servers on-line this can be confusing! What it means is you are allowing external access (Intranet and Internet) to either the root folder UniServer\www or root folder UniServer\ssl. Restricting access means only the local machine has access to these roots folders. Clicking either of the four menu items opens a window confirming the selection. This window (Passwords Htaccess On-line) also allows you to directly control all the features associated with accessing root folders. For example you can password protect these.
Apache Configuration	This menu item opens a window where you can change some common Apache parameters. It also provides direct access to the two Apache configuration files. After making a change you can check the syntax.
PHP Configuration	This menu item opens a window where you can change some common PHP parameters. It also provides direct access to the three PHP configuration files used in Uniform Server.
Exit	Closes the program

Top

Passwords Htaccess On-line

The first thing you will notice there is three root folders, should you wish you can put Apanel on-line.

Each root folder is protected by an htaccess file this allows you to enable public access or restrict access either locally or password protect them. Hence three common sections the following description is for root folder www however it applies to all three.

Root Folder www Default Uniform Server is locked down allowing only local access. Password access is disabled. Set a name and password: In the name text box enter a name you wish to use. In the password box enter a password you wish to use. Click the Change name password button this saves them to a file for latter use. Password protect root folder: Click first button on right. Toggles between Password Disabled and Password Enabled With "Password Enabled" you are required to enter a name and password to access the root folder. On-line Access - Local Access: Second button on right toggles between who can access the root folder. If password is enabled they are required to enter a name and password even if they are local or on-line. Test Opens that root folder in your default browser. It allows you to check the configuration set. Other buttons E Button allows you to edit the htacces file directly ? Provides detailed information Related information 5.0-Nano: Security features

Top

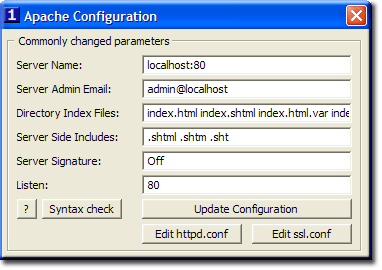

Apache Configuration

This window provides access to some common Apache configuration parameters. Generally there is no need to change any of these

Update Configuration After making changes this button updates the Apache configuration file accordingly. Note: Changes do not become effective until you restart the server. Syntax Check After updating the configuration file run a syntax check. It will pick up any typos. Edit httpd.conf Provides direct access to Apache’s main configuration file it opens this file in your default text editor. Edit ssl.conf Provides direct access to Apache’s ssl configuration file it opens this file in your default text editor. ? Provides detailed information for configuring Top

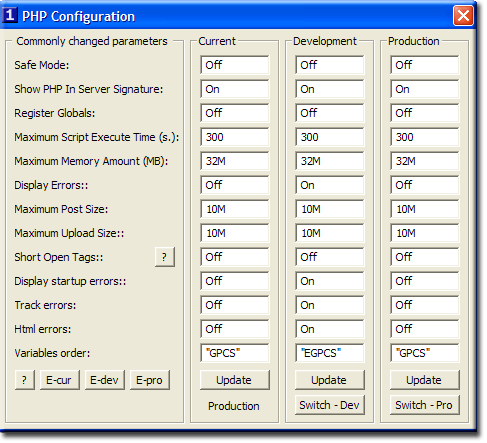

PHP Configuration

Uniform server uses three configuration files for PHP. PHP loads and uses the current (php.ini) file this file is overwritten when either the development or production file is switch in. This allows you to easily swap between the two.

Access to the current configuration file is provided allowing you to experiment with parameters. If you kill the server switching in either development or production will get you backup and running.

Any changes made to the current ini file do not become effective until the server is restarted. After making changes to either development or production use the update button to save changes. After saving changes you can switch the file into service remember this overwrites the current file. Again you need to restart the server for the changes to take effect.

Note: Default Uniform Server has the production PHP configuration file switched in. This window provides access to some common PHP configuration parameters. If a parameter is not listed you can edit a configuration file directly using the following buttons: E-cur Allows you to edit the current configuration file. File is opened in your default text editor. E-dev Allows you to edit the development configuration file. File is opened in your default text editor. E-pro Allows you to edit the production configuration file. File is opened in your default text editor. Current: Update Updates the current.ini file. Text indicator Displays what ini file was last switch in. Development: Update Updates the development .ini file. Switch-dev Switches in the development configuration file overwriting the current file. Production: Update Updates the production .ini file. Switch-pro Switches in the production configuration file overwriting the current file. ? Provides detailed information Top

Short open tags

Warning

• Do not use the short form <? ?> of PHP open tag.
• Always use the long form of PHP open tag <?php ?>
• Always switch short form open tags off'

However older PHP scripts may use short open tags in order to test these you can change short form open tags to on after testing remember to switch back to full form tags.

You can convert older scripts as follows

• Replace all occurrences of <? ?> with <?php ?>
• Replace all occurrences of <?= with <?php echo

Top

Summary

The above provides access to some common server parameters that you may wish to change.

In particular, putting the server on-line and if required setting name password protection on the root folders.

The next page covers the Local drop down menu. This menu provides short cuts to Apache syntax check and switching PHP ini files. It also allows you to open the move servers window.
