Quick Perl (CLI) 3.5-Apollo |
On the previous page I covered Perl CGI (common gateway interface) I now cover the second face of Perl CLI (command line interface. Perl CLI is easy to use, combine this with batch files and it provides unlimited power to manipulate files and system resources. Perl was originally designed for this very task it’s designers have retained this core functionality.
Perl's core component consists of two files; these are portable hence you can use them independently of Uniform Server. This portability you can use to great advantage, for the examples on this page I think it is best to move the Perl engine to a working folder if you wish you can use the existing Uniform Server’s location the choice is yours.
Perl Engine -Working folder
All we need to do is make a copy of the two files and place them in a working folder. You can use any drive and name the folder whatever you like. I tend to name my folders with a suffix a_ the only reason for doing this when viewed in Explorer brings them to the top of a folder tree. One tip keep your file and folder names short this saves you a lot of typing when using a command window.
Follow these instructions to create a working copy of Perl:
|
Interface file perl.exe is the “Perl Command Line Interpreter” it receives commands both from you (command prompt CLI) or another program (Apache CGI), decides on the appropriate action and returns information. A Perl script is passed to the main engine perl58.dll “Perl Interpreter” this compiles a script and returns the result via the interface back to you or the calling program.
Test Script
This test script is as old as the hills, run Notepad (or any other text editor) and type the following line into it:
print "Hello World"; |
Save the file to folder c:\a_perl and name it test.pl
Note: All Perl scripts you write need to have a file extension of .pl
How to run a command prompt
The following shows how to start a command prompt however unless you like typing I do not expect you to sit there using it full time. I have shown it to highlight the commands you need to type in.
These commands are important, they are used in batch files to make life easier I cover this later. Aldo shown is the method of running a PHP script.
|

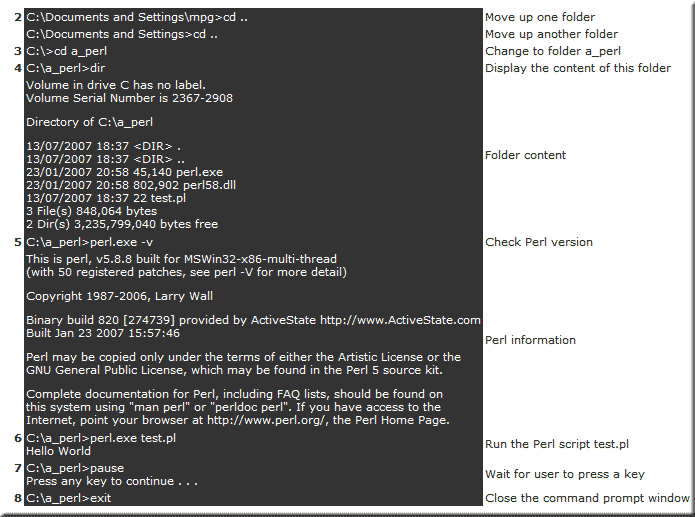

Those eight steps result in a display similar to this:
Steps 2 and 3: Are really demonstrating how to move up and down the folder tree. The two full stops move you up one level, while cd stands for change directory (folder) effectively moving you down the folder tree.
Step 5: Is of importance it shows how to pass a switch to Perl in this case display its version information. If you run the same line with –h switch it displays a whole host of switches you can use. I have highlighted the two I find most useful. Switches are predominately used when running Perl as CLI, normally never used in CGI other than via script commands.
These two I find most useful:
- -c check syntax only (runs BEGIN and CHECK blocks)
- -W enable all warnings
Switches are predominately used when running PHP as CLI here is the full list:
C:\a_perl>perl -h Usage: C:\a_perl\perl.exe [switches] [--] [programfile] [arguments] -0[octal] specify record separator (\0, if no argument) -a autosplit mode with -n or -p (splits $_ into @F) -C[number/list] enables the listed Unicode features -c check syntax only (runs BEGIN and CHECK blocks) -d[:debugger] run program under debugger -D[number/list] set debugging flags (argument is a bit mask or alphabets) -e program one line of program (several -e's allowed, omit programfile) -f don't do $sitelib/sitecustomize.pl at startup -F/pattern/ split() pattern for -a switch (//'s are optional) -i[extension] edit <> files in place (makes backup if extension supplied) -Idirectory specify @INC/#include directory (several -I's allowed) -l[octal] enable line ending processing, specifies line terminator -[mM][-]module execute "use/no module..." before executing program -n assume "while (<>) { ... }" loop around program -p assume loop like -n but print line also, like sed -P run program through C preprocessor before compilation -s enable rudimentary parsing for switches after programfile -S look for programfile using PATH environment variable -t enable tainting warnings -T enable tainting checks -u dump core after parsing program -U allow unsafe operations -v print version, subversion (includes VERY IMPORTANT perl info) -V[:variable] print configuration summary (or a single Config.pm variable) -w enable many useful warnings (RECOMMENDED) -W enable all warnings -x[directory] strip off text before #!perl line and perhaps cd to directory -X disable all warnings
Step 6: Shows how to run your Perl script. Main point here you must specify the executable perl.exe you cannot just type in test.pl and expect it to run. We are running Perl in a portable environment; by this I mean Windows has no idea what to do with the file you typed in, since there is no Windows path to the executable and no file extension .pl association with any executable. If running a script from another folder not containing the executable (perl.exe) the full path to it must supplied. For example c:\a_perl\perl.exe some_script.pl
Step 7: I slipped this in to show you what a pause command displays; it stops execution and waits for a response from a user, absolutely not required when running interactively with a command window. You will see the importance of this command shortly.
Step 8: Exit kills off the command prompt.
I very rarely use a command prompt; my preference is to run a batch file containing the above commands. All I need to do is double click on that batch file and let Windows do the donkeywork.
Batch file processing
Using a text editor create a new text file and type this line into it:
perl.exe test.pl |
Save it to folder c:\a_perl with the following name run.bat Run this batch file from Explorer by double clicking on it.
I hope you were impressed by the result, batch file ran, followed by Perl running your script and finally batch file ending. I admit a little fast you probably only saw the command window for a short time. Now add the pause command to your batch file and run it again.
perl.exe test.pl |
Check Bat
That one batch file will allow you to run any of your scripts however before you get carried always make sure your scripts compile first before running them. For this I use a second batch named check.bat and add switches to the perl.exe the two I highlighted above. Create a new text file and add the following lines:
perl.exe -c -W test.pl |
When run, this batch file performs a syntax check (-c) with all warnings (-W) on it does not execute the Perl script.
Before running the above batch file, create an error in the test file. For example edit test.pl copy and paste the print line several times, on any line remove a quote save the file. Now run check.bat
Correct the error and run it again. With all the errors removed you can use run.bat to see what your script produces.
Summary
Using only two very basic batch files you can run Perl independent of Uniform Server and Windows it makes an excellent portable development tool for Perl programs.
|
|
|
Relative paths
I mentioned you must use full paths to the perl.exe file that’s not strictly true! You can use relative paths, so long as they lead Windows to the executable.
Create a new folder in c:/a_perl named down now move the two bat files (run and check) into it.
When you run these batch files Windows will be unable to find either the perl.exe or your test.pl script.
To the rescue the two dots and a back slash, these move up the folder tree one level. Add these to the paths in your two batch files they will look like this:
|
|
|
One extremely important point Perl uses as a reference point the location (path) of the program that called it. It does not use the path that it resides in.
When Perl uses relative paths in calculations these are referenced to the location of the calling program in our case the batch files.
Complete example
Expanding the above introduction I am now going provide a more practical example this uses some of the system commands and introduces user input and output.
Set-up
Create a folder anywhere you like choose a suitable name I will be using perl_examples.
Copy the two files perl.exe and perl58.dll located in Uniform Server’s folder *\Uniform Server\udrive\usr\bin to perl_examples.
Create four blank text files named test.pl, go.bat, check.bat and run.bat add the text shown below to each file:
File Name | Text | Comment |
---|---|---|
test.pl | Your test script, you can choose any name you like, must have the extension .pl if you change the name change batch files to match. | |
check.bat | perl.exe -c -W test.pl pause |
Run this first to check your script (test.pl) for syntax errors. It does not run your script only checks for errors. To give you a chance to view any results pause is included to halt execution of the bat file until a key is pressed. |
run.bat | perl.exe test.pl pause |
This runs your script (test.pl) again pause is included to give you a chance to view any output from your script. |
go.bat | perl.exe test.pl | Runs your Perl script (test.pl) and closes. Assumes you are not outputting text to the command prompt. If you do include a pause command in your script or use run.bat. |
Note: The above file names are insignificant you can use whatever you like however do not change the file extension.
Hello World Script
Add the following lines to test.pl
<? |
From explorer run the batch files (double clicking on file name). Results as follows:
File Name | Result | Comment |
---|---|---|
check.bat | C:\perl_examples>perl.exe -c -W test.pl test.pl syntax OK C:\perl_examples>pause Press any key to continue . . . |
Batch file passes commands to the command prompt hence the display. Passes the syntax check Waits for user input |
run.bat | C:\perl_examples>perl.exe test.pl Hello World C:\perl_examples>pause |
Batch file passes commands to the command prompt hence the display.
Perl script is run and displays the out from the print commands Waits for user input |
go.bat | Screen flashes | No pause in the script. |
Streams
Data is pushed around a PC and across the Internet in a serial format consisting of a stream of ones and zeros. Data from a keyboard and data to a screen are referred to as the standard input and standard output streams. The source and destining of these streams can be changed, what is interesting, data can be treated as file input and output. These streams are automatically available to Perl CLI and identified with the constants STDIN and STDOUT respectively.
User Input
Open test.pl delete its content and add the following lines:
system('cls'); print "Enter some text\n"; $input = <STDIN>; chomp $input; print "The text you entered was $input \n"; system('pause'); |
From explorer run the batch files (double clicking on file name). Results as follows:
File Name | Result | Comment |
---|---|---|
check.bat | C:\perl_examples>perl.exe -c -W test.pl test.pl syntax OK C:\perl_examples>pause |
Batch file passes commands to the command prompt hence the display. Passes the syntax check Waits for user input |
run.bat | Enter some text Test 1234 C:\perl_examples>pause |
Screen cleared using: system('cls'); Enter request: print "Enter some text\n"; |
go.bat | Enter some text Test 1234 |
Screen cleared using: system('cls'); Enter request: print "Enter some text\n"; |
Reading a text file
Create a new text file named data.txt and add the following lines
First Line |
Open test.pl delete its content and add the following lines:
system('cls'); $file ="data.txt"; open(INFILE,$file); @some_txt=<INFILE>; close(INFILE); foreach $text(@some_txt){ print $text; } system('pause'); |
From explorer run the batch files (double clicking on file name). Results as follows:
File Name | Result | Comment |
---|---|---|
check.bat | C:\perl_examples>perl.exe -c -W test.pl test.pl syntax OK C:\perl_examples>pause |
Batch file passes commands to the command prompt hence the display. Passes the syntax check Waits for user input |
run.bat | First Line Second Line C:\perl_examples>pause |
Screen cleared using: system('cls'); Set a variable to the file: $file ="data.txt"; |
go.bat | First Line Second Line |
Same as above without Pause from: Batch file |
Write to a text file
Open test.pl delete its content and add the following lines:
system('cls'); $some_data[0]="New line one\n"; $some_data[1]="New line two\n"; $some_data[3]="New line three\n"; $file ="new_data.txt"; open(OUTFILE,">$file"); foreach $save(@some_data){ print OUTFILE $save; } close(OUTFILE); print "File written\n"; system('pause'); |
From explorer run the batch files (double clicking on file name). Results as follows:
File Name | Result | Comment |
---|---|---|
check.bat | C:\perl_examples>perl.exe -c -W test.pl test.pl syntax OK C:\perl_examples>pause |
Batch file enters commands to the command prompt hence the display. Passes the syntax check Waits for user input |
run.bat | File written Press any key to continue . . . C:\perl_examples>pause |
Screen cleared using: system('cls'); Build text array:
|
go.bat | File written Press any key to continue . . . |
Same as above without Pause from: Batch file |
new_data.txt | New line one New line two |
Lines written to file. |
Summary
I have shown how easy it is to use Perl CLI. You can avoid a command prompt and all its associated typing by using three batch files. Uniform Server’s prime use of Perl is in CGI mode to server interactive pages.
Ric |
